EXPLOSION PROOF ZERON
EXPLOSION PROOF ZERON

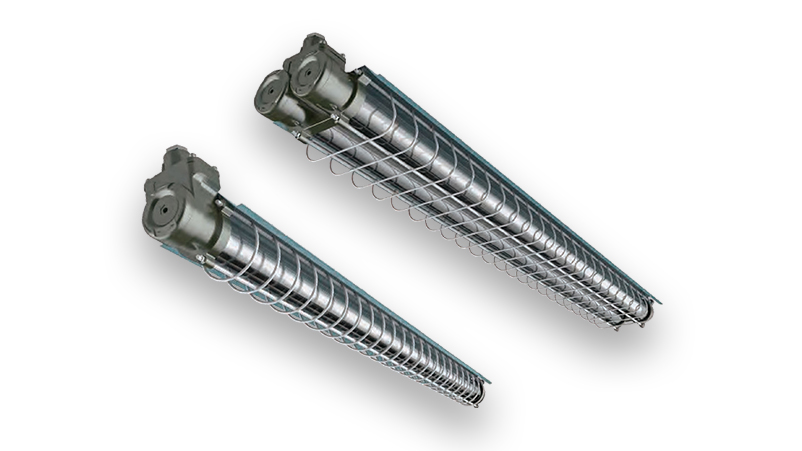

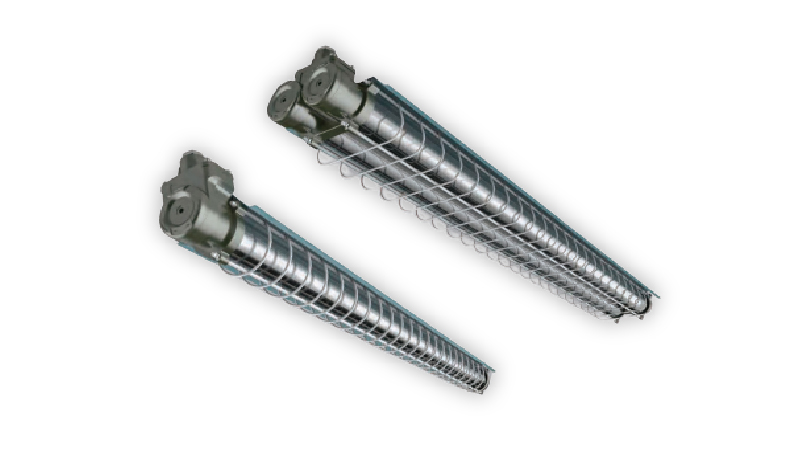

OHBF51S & OHBF51D
Product information
- Category: EXPLOSION PROOF
- Product Code: OHBF51S & OHBF51D
- Brand: ZERON
- Catalogue URL: Download
Product Specifications
| Model | OHBF51S & OHBF51D |
| Executive Standard | GB3836.1, GB3836.2, |
| Rated Power | 1X18W / 2X18W |
| Rated Voltage | AC 110-270V 50/60Hz |
| Weight | 2.6Kg / 4.6Kg |

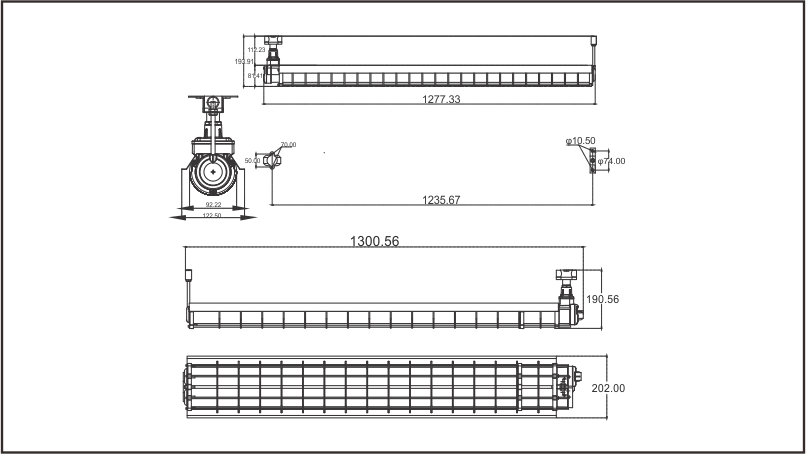

| Size | 1280X123X146MM / 1300X202X146MM |
| Color Rendering | ≥75Ra |
| Power Factor | >0.95 |
| Emergency Time | 90-180 Min |
| Protection Level | IP 66 |
| Anticorrosion Grade | WF2 |
| Light Effect | 120LM/W (200LM/W Optional) |
| Introduction Device | G3/4" Ф8MM-Ф14MM |
| Explosion Proof Mark | Ex nR II T6 Gc/Ex tD A21 |
