EXPLOSION PROOF ZERON
EXPLOSION PROOF ZERON
OHBF8231-SG
Product information
- Category: EXPLOSION PROOF
- Product Code: OHBF8231-SG
- Brand: ZERON
- Catalogue URL: Download
Product Specifications
| Model | OHBF8231 |
| Executive Standard | GB3836.1, GB3836.2 |
| Rated Power | 50W / 60W / 80W / 90W |
| Rated Voltage | AC170-270V 50/60Hz |
| Weight | 5.5Kg |

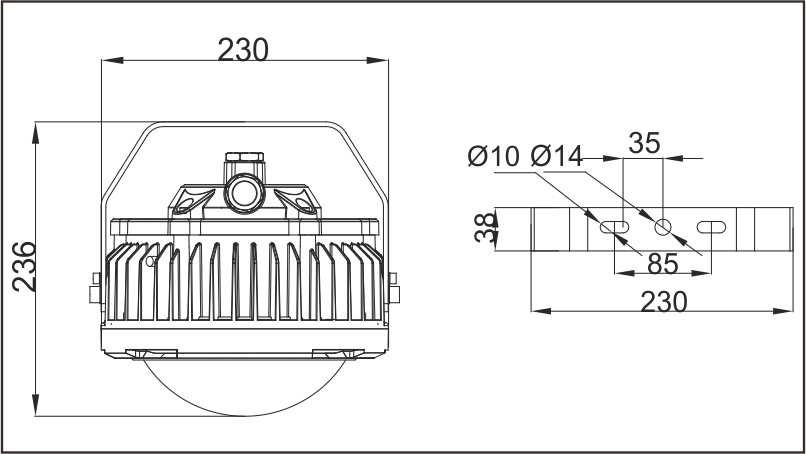

| Size | Φ252X201MM |
| Color Rendering | ≥75Ra |
| Power Factor | >0.95 |
| Beam Angle | 122.4° |
| Protection Level | IP 66 |
| Anticorrosion Grade | WF2 |
| Light Effect | 120LM/W (200LM/W Optional) |
| Introduction Device | G3/4" Ф8MM-Ф14MM |
| Explosion Proof Mark | Ex d llC T6 Gb/Ex TD A21 T80°C |
