EXPLOSION PROOF ZERON
EXPLOSION PROOF ZERON
OHBF8260-SM
Product information
- Category: EXPLOSION PROOF
- Product Code: OHBF8260-MS
- Brand: ZERON
- Catalogue URL: Download
Product Specifications
| Model | OHBF8260 |
| Executive Standard | GB3836.1, GB3836.2 |
| Rated Power | 80W / 100W / 120W / 150W / 200W |
| Rated Voltage | AC 100-270V 50/60Hz |
| Weight | 8.9Kg |

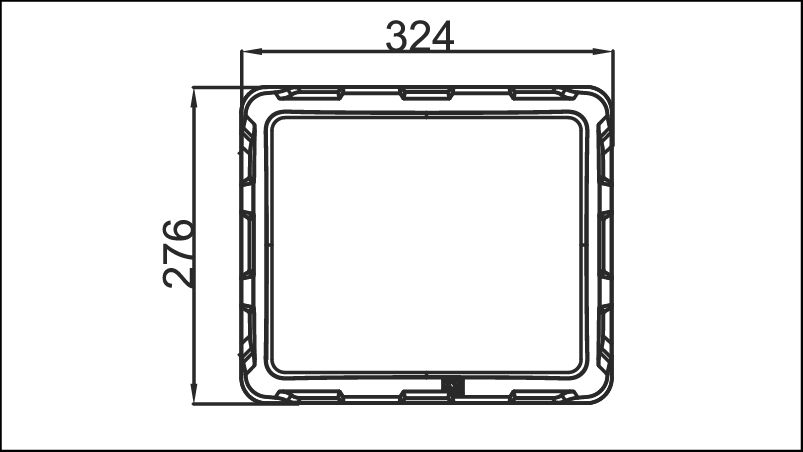

| Size | Φ324X276X165MM |
| Color Rendering | ≥75Ra |
| Power Factor | >0.95 |
| Beam Angle | 106.5° |
| Protection Level | IP 66 |
| Anticorrosion Grade | WF2 |
| Light Effect | 120LM/W (200LM/W Optional) |
| Introduction Device | G3/4" Ф8MM-Ф14MM |
| Explosion Proof Mark | Ex d llC T6 Gb/Ex TD A21 T80°C |
